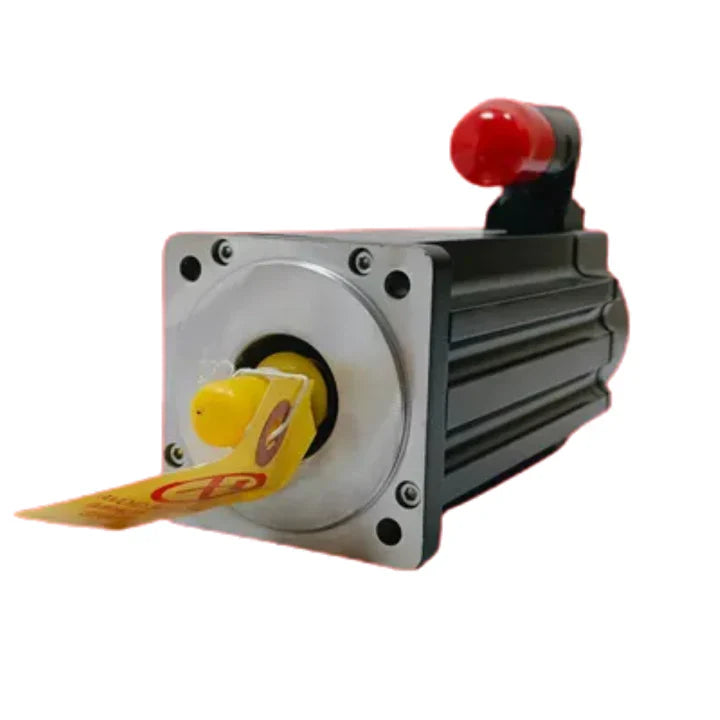

Allen-Bradley VPL-B1304E-PJ12AA

The Allen-Bradley VPL-B1304E-PJ12AA is a powerful low-inertia servo motor from the Kinetix VP series, designed for high-performance automation. It features a 130 mm bolt circle frame, four magnet stacks, and E winding, providing up to 3500 RPM for demanding motion control tasks. This model includes an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder and a keyed shaft, with no holding brake for systems where braking is not required.

◆ Key Features:

• Voltage: 480 VAC, 3-phase

• Frame Size: 130 mm bolt circle

• Magnet Stacks: 4

• Winding Type: E

• Rated Speed: 3500 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyed

• Connector: SpeedTec right-angle DIN

• Holding Brake: Not included

• Mounting: IEC metric flange

• Enclosure: Standard industrial housing

◆ Technical Specifications:

• Catalog Number: VPL-B1304E-PJ12AA

• Rated Voltage: 480 VAC

• Rated Speed: 3500 RPM

• Encoder Type: Digital high-resolution, multi-turn

• Shaft: Keyed

• Brake: Not included

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 10.5 kg

◆ Applications:

• High-power multi-axis systems

• Advanced manufacturing and robotics

• Packaging lines and press automation

• OEM machinery requiring robust torque

• Precision motion systems without brake requirement

◆ Why Choose the VPL-B1304E-PJ12AA?

• Excellent torque from 4 magnet stacks in a 130 mm frame

• Multi-turn encoder enables high-precision motion

• Keyed shaft ensures secure mechanical connection

• No brake ideal for applications with external load control

• Durable and efficient for long-term industrial use

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
