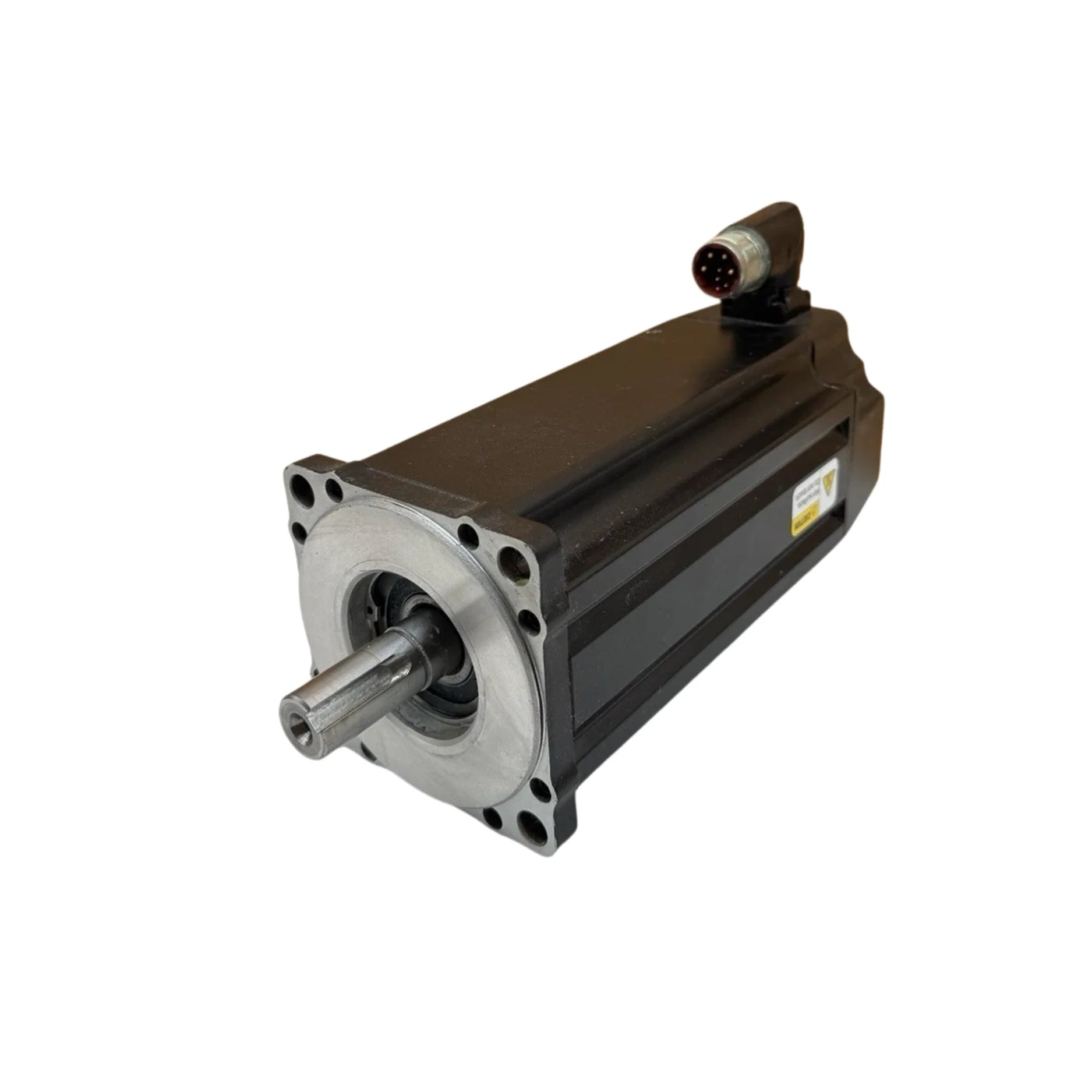

Allen-Bradley VPL-B1153F-CJ14AA

The Allen-Bradley VPL-B1153F-CJ14AA is a high-performance Kinetix VP low-inertia servo motor designed for dynamic and precise motion control. It features a 115 mm bolt circle frame, three magnet stacks for enhanced torque, and a 4500 RPM rated speed. This model includes a single-turn high-resolution encoder, keyed shaft, SpeedTec right-angle DIN connector, and an integrated 24 V DC holding brake for secure positioning.

◆ Key Features:

• Voltage: 480 VAC, 3-phase

• Frame Size: 115 mm bolt circle

• Rotor Inertia: Low inertia

• Magnet Stacks: 3

• Winding Type: F

• Rated Speed: 4500 RPM

• Feedback: Single-turn high-resolution encoder

• Shaft Type: Keyed

• Connector: SpeedTec DIN, right-angle

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial-grade

◆ Technical Specifications:

• Catalog Number: VPL-B1153F-CJ14AA

• Rated Voltage: 480 VAC

• Rated Speed: 4500 RPM

• Encoder: Single-turn absolute

• Shaft: Keyed

• Connector Type: SpeedTec DIN, right-angle

• Brake: 24 V DC holding brake

• Mounting Style: IEC metric flange

• Protection Class: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 7.5 kg

◆ Applications:

• High-torque motion systems

• Packaging and material forming machines

• Coordinated axis control in automation systems

• Precision rotary applications

• OEM equipment requiring secure brake hold

◆ Why Choose the VPL-B1153F-CJ14AA?

• Built for high-performance, high-torque applications

• Reliable feedback with single-turn encoder

• Brake-equipped for safety and vertical load holding

• Keyed shaft offers secure mechanical coupling

• Compact, robust design ideal for demanding environments

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
