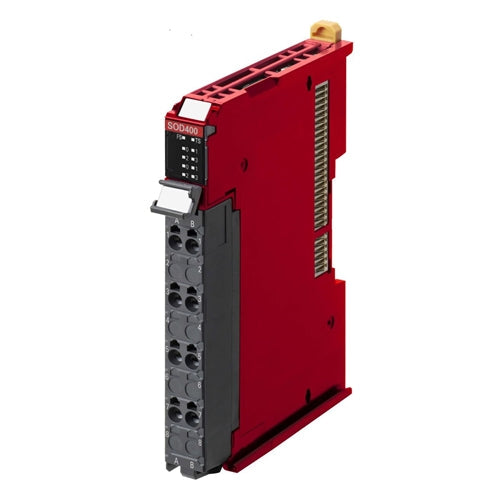

Omron NX-SOD400

The Omron NX-SOD400 is a 4-channel safety output module for the NX-series I/O platform, designed for safety control systems using CIP Safety over EtherNet/IP. Each output is PNP (sourcing) and independently controlled, enabling safe shutdown of actuators, contactors, or machinery in compliance with safety standards up to PLe / SIL3.

This module is ideal for distributed and modular machine safety architectures and seamlessly integrates with Omron safety controllers such as the NX-SL5xxx series.

◆ Key Features:

• 4 Safety Outputs – PNP (sourcing), individually controlled

• Rated Output Voltage: 24V DC

• CIP Safety over EtherNet/IP – For high-speed, safe communication

• Safety Level: Up to PLe (ISO 13849-1) / SIL3 (IEC 61508)

• Short-Circuit and Overload Protection

• DIN Rail Mountable – Compact and easy to integrate

◆ Technical Specifications:

• Catalog Number: NX-SOD400

• Series: NX Safety

• Output Channels: 4

• Output Type: PNP (sourcing), solid-state

• Output Voltage: 24V DC

• Max Load Current: 2 A per channel, 6 A total

• Response Time: ≤ 10 ms

• Safety Standards: PLe / SIL3

• Communication: CIP Safety over EtherNet/IP

• Mounting: DIN rail (NX I/O bus)

• Operating Temperature: 0°C to +55°C

• Weight: Approx. 200 g

◆ Applications:

• Machine Safety Control – Emergency stop, guard interlock, and actuator control

• Modular Safety Architectures – Distributed I/O with CIP Safety

• Packaging, Robotics & Material Handling – Where certified safety is critical

◆ Why Choose the NX-SOD400?:

• Meets the highest safety standards with fast response

• Ideal for use with Omron NX safety controllers

• Compact footprint for distributed safety I/O applications

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
