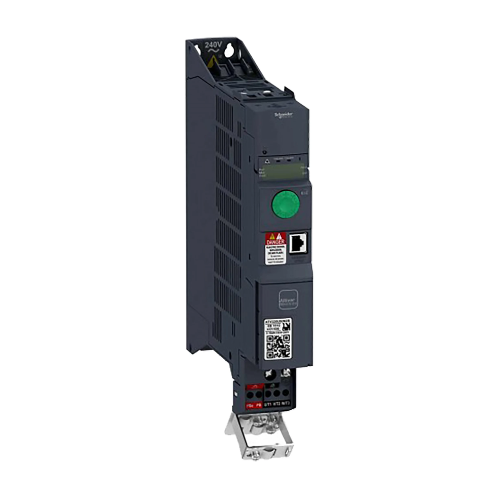

Schneider Electric ATV320U07N4B

The Schneider Electric ATV320U07N4B is a variable speed drive from the Altivar Machine ATV320 series, designed to control 3-phase synchronous and asynchronous motors. With a power rating of 0.75 kW, it operates within a voltage range of 380 to 500V. This drive is optimized for complex machine applications, offering enhanced safety, reliability, and performance.

◆ Key Features:

• Power Rating: 0.75 kW suitable for heavy-duty operations.
• Voltage Compatibility: Supports 3-phase motors operating between 380 to 500V.
• Integrated EMC Filter: Class C2 EMC filter for reduced electromagnetic interference.
• Safety Functions: Includes Safe Torque Off (STO) and Safe Stop 1 (SS1) functionalities for enhanced operational safety.
• Communication Protocols: Built-in Modbus serial and CANopen protocols, with options for additional modules like EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet.
• Compact Design: Book format for efficient cabinet mounting and space-saving installations.
• User-Friendly Interface: Equipped with multiple analog and digital inputs/outputs for flexible control and monitoring.

◆ Technical Specifications:

• Model: ATV320U07N4B
• Series: Altivar Machine ATV320
• Power Rating: 0.75 kW
• Supply Voltage: 380–500V (-15% to +10%)
• Nominal Output Current: 2.3 A
• Control Methods: Voltage/Frequency ratio, Flux vector control without sensor, and Energy Saving modes.
• Maximum Output Frequency: Up to 599 Hz
• Switching Frequency: Adjustable between 2 to 16 kHz
• Protection Rating: IP20
• Operating Temperature: -10°C to +50°C without derating; up to +60°C with derating
• Dimensions (W x H x D): 45 mm x 325 mm x 245 mm
• Weight: 2.5 kg

◆ Applications:

• Complex Machinery: Ideal for machines requiring precise motor control and safety features.
• Material Handling: Enhances the efficiency of conveyors, hoists, and cranes.
• Pumping Systems: Optimizes energy consumption in various pumping applications.
• HVAC Systems: Suitable for fans and ventilation systems, ensuring optimal climate control.

◆ Why Choose the Schneider Electric ATV320U07N4B?:

• Enhanced Safety: Integrated safety functions like STO and SS1 ensure compliance with international safety standards.
• Versatile Communication: Supports multiple communication protocols for seamless integration into diverse control systems.
• Energy Efficiency: Advanced control algorithms contribute to significant energy savings.
• Robust Performance: Designed to operate reliably in demanding industrial environments.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
