ABB ACS310-03E-25A4-4 | 3AUA0000039635

◆ ABB ACS310-03E-25A4-4 | 11 kW VFD, 25.4 A, 400 V, IP20 for Pumps and Fans

Global Commercial Alias: ACS310-03E-25A4-4Product ID: 3AUA0000039635ABB Type Designation: ACS310-03E-25A4-4Catalog Description: Variable Frequency Drive, 11 kW, 25.4 A, 400 V, IP20, optimized for HVAC, pump, and fan control in light-duty industrial applications

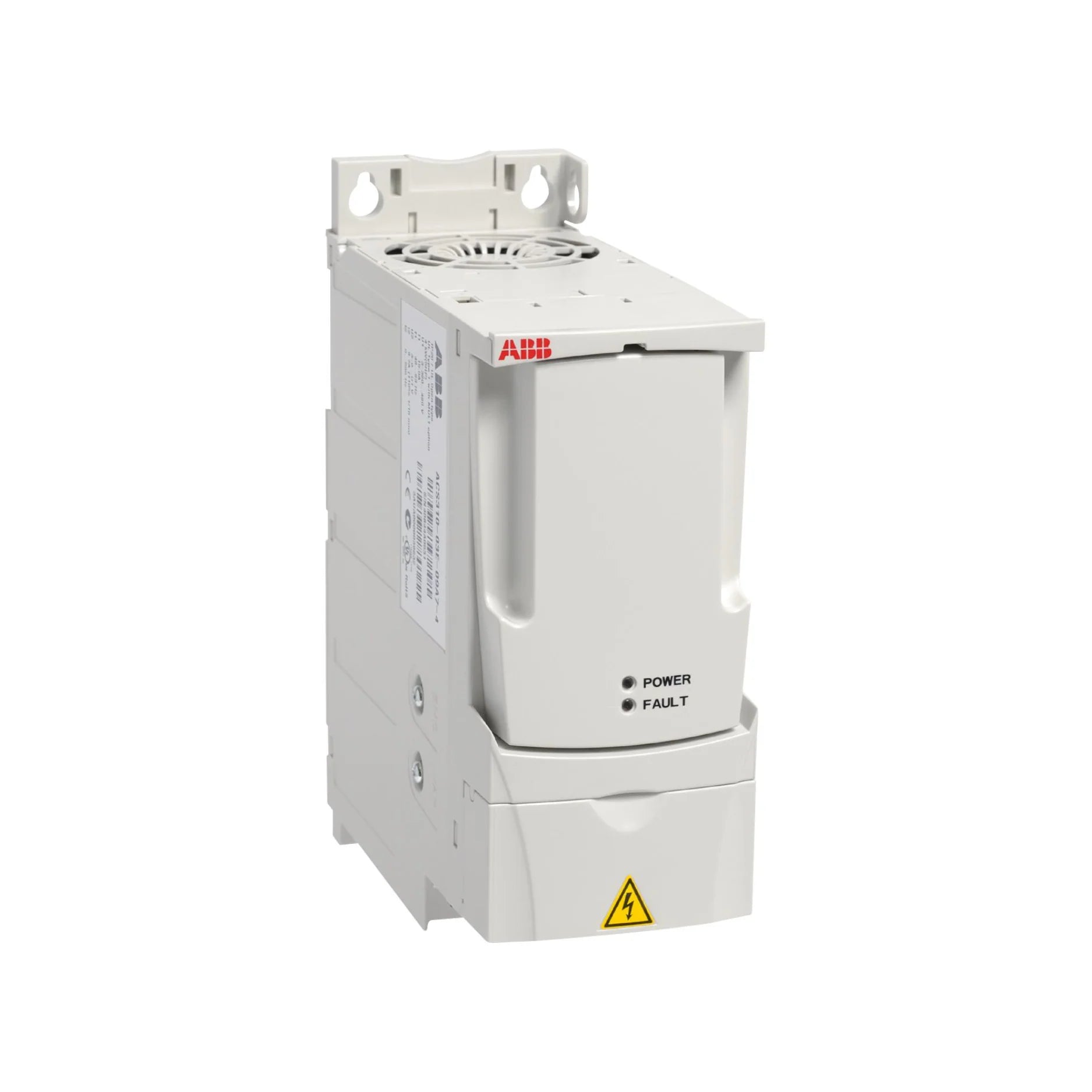

The ABB ACS310-03E-25A4-4 is a high-efficiency VFD designed to control pumps and fans in HVAC and light industrial systems. It delivers precise motor control, built-in energy-saving functions, and robust protection features in a compact footprint.

◆ Key Features

• Motor Power: 11 kW (15 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 25.4 A

• Control Method: Scalar (V/f) control

• Dedicated Functions: Sleep/wake, pump cleaning, soft fill, PID control

• Overload Capacity: 110% for 60 seconds

• EMC Filter: Integrated C2 class

• Enclosure Protection: IP20

• Mounting Options: Wall-mountable or DIN rail

• Control Panel: Optional

◆ Technical Specifications

• Frequency Range: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 2

• Analog Outputs: 1

• Relay Outputs: 1

• Protection: Overvoltage, short-circuit, overload

• Operating Temp: -10°C to +50°C

• Dimensions (H x W x D): 219 mm x 120 mm x 160 mm

• Weight: 2.6 kg

• Certifications: CE, UL, cUL, RoHS

◆ Applications

• HVAC and ventilation systems

• Pump control in water management

• Booster systems

• Light industrial machinery

◆ Product Description

The ABB ACS310-03E-25A4-4 offers intuitive control and enhanced energy efficiency for motor-driven systems in various industries. With specialized pump and fan functions, it helps optimize performance and reduce operational costs.

◆ Why Choose ABB ACS310-03E-25A4-4?

• Optimized for HVAC and water applications

• Energy-saving features built-in

• Quick setup and integration

• Reliable ABB technology and support

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
