Schneider Electric LMC802CAA10000

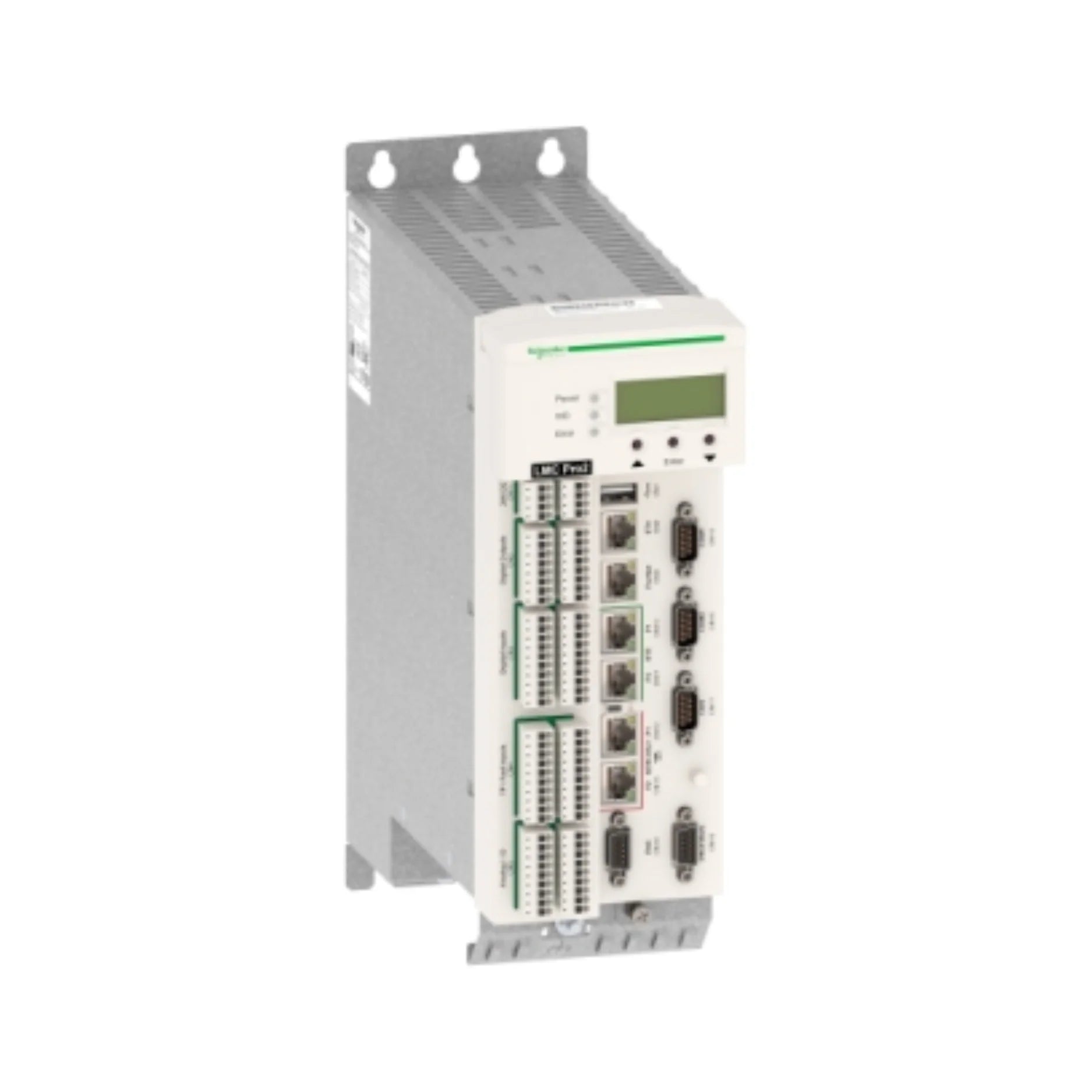

The Schneider Electric LMC802CAA10000 is the most powerful controller in the PacDrive 3 family, capable of managing up to 130 motion axes. Designed for large-scale, high-performance automation systems, it combines extensive I/O flexibility with broad communication support, making it ideal for packaging lines, robotics, and synchronized multi-axis machinery.

It features 20 digital inputs, 16 digital outputs, 16 touch probe inputs, 4 interrupt inputs, plus 2 analog inputs and 2 analog outputs. Powered by 24 V DC, the controller delivers 36 W consumption with 1 GB DDR3L RAM and 256 kB NVRAM to ensure maximum computing power and stability. Integration is seamless with Ethernet, CANopen, Profibus DP, RS232/RS485, and USB connectivity.

◆ Key Features:

• Brand: Schneider Electric

• Range: PacDrive 3

• Model: LMC802CAA10000

• Motion Axes: 130

• Rated Supply Voltage: 24 V DC (<1 A)

• Power Consumption: 36 W

• Memory: 1 GB DDR3L RAM, 256 kB NVRAM

• Programming Languages: SFC, FBD, ST, IL, CFC, LD

• I/O:

  • 20 digital inputs (IEC 61131-2 Type 1)

  • 4 interrupt inputs

  • 16 touch probe inputs

  • 16 digital outputs, 250 mA each

  • 2 analog inputs (±10 V / ±20 mA, 12-bit resolution)

  • 2 analog outputs

• Interfaces:

  • 2 × Ethernet RJ45 (Sercos)

  • 2 × Ethernet RJ45 (RT-Ethernet, real-time)

  • 1 × Ethernet RJ45 PacNet

  • 1 × Ethernet RJ45 10/100/1000BASE-T (FTP/HTTP)

  • 1 × CAN SUB-D 9 (CANopen)

  • 1 × SUB-D 9 Profibus DP

  • 1 × RS232 SUB-D 9 serial link (COM1)

  • 1 × RS422/RS485 SUB-D 9 serial link (COM2)

  • 1 × SUB-D 9 master encoder port

  • 1 × USB type A

◆ Technical Specifications:

• Dimensions (W × H × D): 100 × 310 × 243 mm (3.9 × 12.2 × 9.6 in)

• Net Weight: 3.5 kg (7.7 lb)

• Packaging Weight: 4.26 kg (9.39 lb)

• Degree of Protection: IP20 (IEC 60529)

• Operating Temperature: +5…55 °C (41…131 °F)

• Relative Humidity: 5…95 % non-condensing

• Vibration Resistance: 3.5 mm (5–8.4 Hz), 10 m/s² (8.4–150 Hz)

• Shock Resistance: 150 m/s² for 6 ms

• Standards: IEC 61131-2, UL 508C, CSA C22.2

• Certifications: CE, CSA, EAC, cULus

◆ Applications:

• High-performance multi-axis robotics

• Large-scale synchronized packaging systems

• Complex processing and assembly machinery

• Advanced automation requiring digital and analog I/O

• Networked motion control with Profibus DP, CANopen, and Ethernet

◆ Why Choose Schneider Electric LMC802CAA10000:

• Industry-leading control of up to 130 motion axes

• Rich set of digital, analog, and touch probe I/O

• Powerful memory and processing for demanding systems

• Extensive communication support for global integration

• Trusted Schneider Electric reliability and certifications

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
