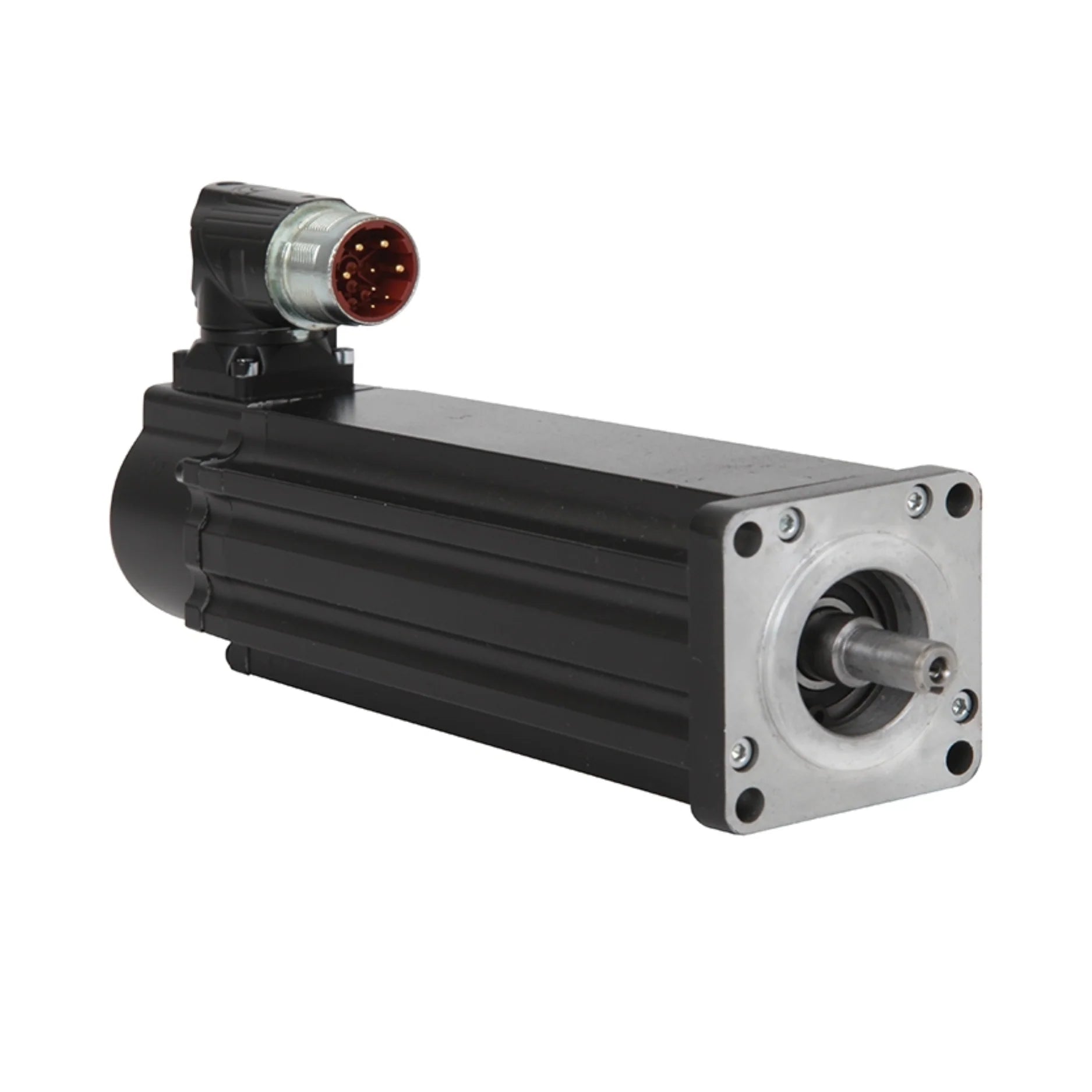

Allen-Bradley VPL-B1654D-PK14AA

The Allen-Bradley VPL-B1654D-PK14AA is a powerful Kinetix VP low-inertia servo motor built for demanding motion control applications. Featuring a 165 mm bolt circle frame, four magnet stacks, and D winding, it offers robust torque at a rated speed of 3000 RPM. This model includes a digital high-resolution 18-bit single-turn and 12-bit multi-turn encoder, a keyless shaft, a SpeedTec right-angle DIN connector, and a 24 V DC holding brake.

◆ Key Features:

• Input Voltage: 480 VAC, 3-phase

• Frame Size: 165 mm bolt circle

• Magnet Stacks: 4

• Winding Type: D

• Rotor Inertia: Low inertia

• Rated Speed: 3000 RPM

• Encoder: 18-bit single-turn + 12-bit multi-turn

• Shaft Type: Keyless

• Connector: SpeedTec right-angle DIN

• Holding Brake: 24 V DC

• Mounting: IEC metric flange

• Enclosure: Standard industrial-grade

◆ Technical Specifications:

• Catalog Number: VPL-B1654D-PK14AA

• Rated Voltage: 480 VAC

• Rated Speed: 3000 RPM

• Encoder Type: Digital high-resolution, multi-turn

• Shaft: Smooth, keyless

• Brake: Included, 24 V DC

• Connector Type: SpeedTec DIN, right-angle

• Mounting Style: IEC metric flange

• Protection Rating: IP50

• Operating Temperature: 0 °C to 40 °C

• Weight: Approx. 10.5 kg

◆ Applications:

• High-torque industrial automation

• Precision positioning systems

• Robotics and heavy-duty material handling

• Packaging and large machinery

• OEM platforms with advanced servo requirements

◆ Why Choose the VPL-B1654D-PK14AA?

• Powerful 4-stack rotor for enhanced torque

• Low-inertia design ensures rapid acceleration

• High-resolution multi-turn encoder for accurate control

• Keyless shaft for simplified installation and alignment

• Integrated brake supports load-holding and safety functions

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
