Pepperl+Fuchs V3-GM-2M-PVC

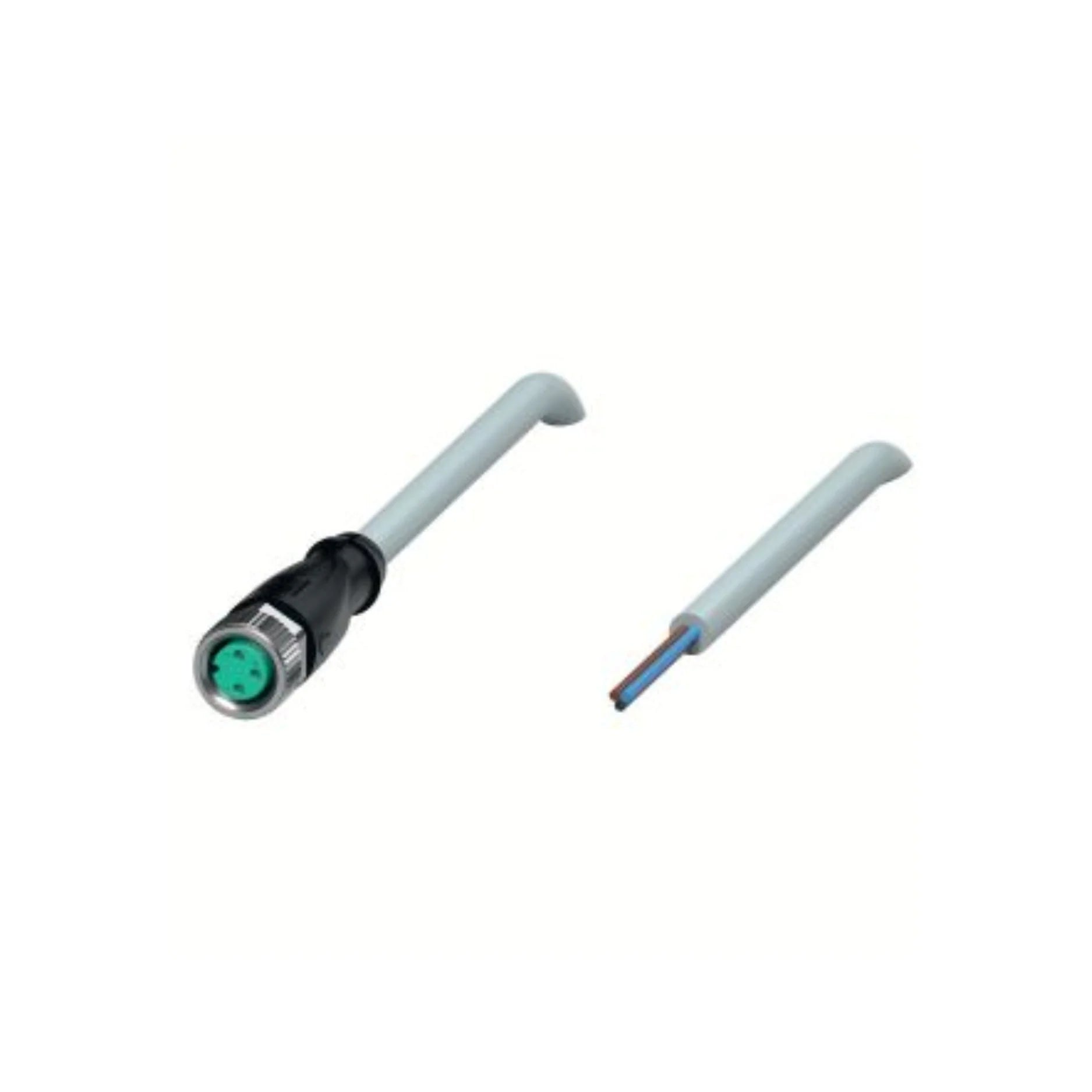

The Pepperl+Fuchs V3-GM-2M-PVC (Part No. 109021) is a 3-pin M8 female cordset with a straight connector and 2-meter PVC cable. Engineered for reliable signal transmission in industrial environments, this IP67-rated connector is ideal for sensors, actuators, and fieldbus devices.

◆ Key Features:

• Connector Type: M8, straight female

• Pin Count: 3-pin, A-coded

• Cable Length: 2 meters

• Cable Jacket: PVC (Polyvinyl Chloride)

• Rated Voltage: 30 V

• Rated Current: 4 A per contact

• Protection Class: IP67 when properly mated

• Temperature Range: -25°C to +80°C

• Wire Gauge: 3 x 0.25 mm² (AWG 24)

• Shielding: Unshielded

◆ Technical Specifications:

• Model Number: V3-GM-2M-PVC

• Part Number: 109021

• Contact Material: Gold-plated brass

• Contact Carrier: TPU (thermoplastic polyurethane)

• Connector Standard: IEC 61076-2-104

• Bending Radius: ≥ 5x cable diameter (fixed)

• Color: Cable typically gray or black

• Weight: Approx. 90 g

◆ Applications:

• Sensor/Actuator Wiring: Quick connection in automation systems

• Industrial Controls: M8 interface for compact installations

• Robotics: Reliable signal transmission with minimal footprint

• Packaging Equipment: Plug-and-play setup for sensors

• Machine Tools: Rugged cable solution for harsh conditions

◆ Why Choose the V3-GM-2M-PVC?:

✅ M8 A-coded design for compact sensor/actuator connections
✅ 2 m PVC cable for flexible and durable installations
✅ Straight connector fits tight mounting zones
✅ IP67-rated sealing for dust and water resistance
✅ Reliable Pepperl+Fuchs quality

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
