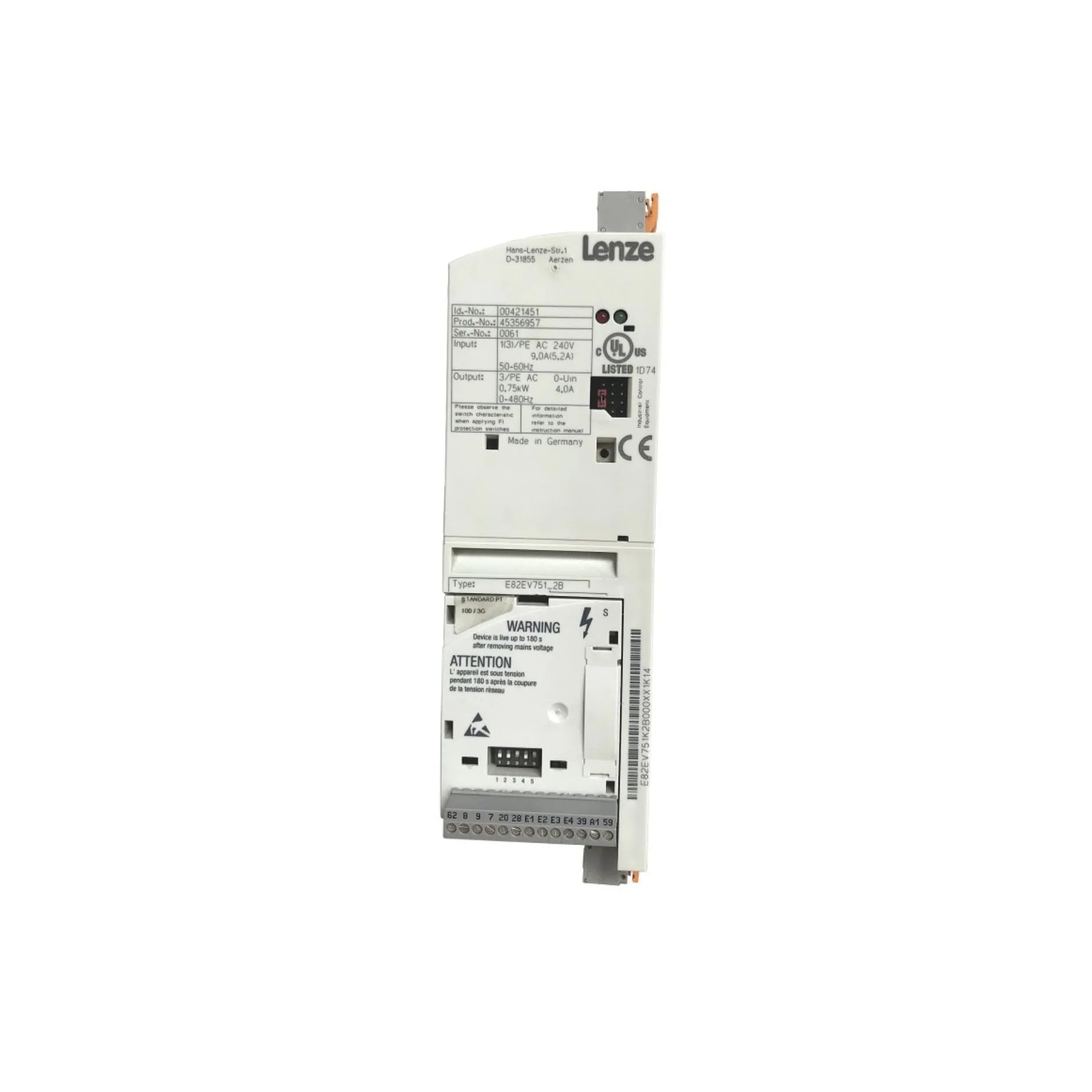

Lenze E82EV751_2B

The Lenze E82EV751_2B is a 0.75 kW frequency inverter from the proven 8200 Vector series, engineered for high-precision and efficient control of motors in compact industrial applications. It features modular expansion capability and vector control for enhanced torque at low speeds without the need for feedback sensors.

◆ Key Features:

• Power Rating: 0.75 kW (1 HP)

• Input Voltage: 1-phase 230V AC

• Output Voltage: 0–230V AC

• Control Methods: V/f and Sensorless Vector Control (VVC+)

• EMC Filter: Integrated

• Braking Transistor: Built-in

• Modular Options: Supports plug-in I/O and communication modules (e.g., CANopen, Profibus)

• Cooling: Natural or fan-assisted

• Protection Class: IP20

• Integrated Functions:

  • PID control

  • Fixed frequencies

  • S-ramps and DC braking

  • Safe Torque Off (STO) when combined with safety modules

◆ Technical Specifications:

• Model Number: E82EV751_2B

• Rated Output Current: ~4.6 A

• Frequency Range: 0 to 650 Hz

• Switching Frequency: Up to 16 kHz

• Ambient Temperature: 0°C to +45°C

• Mounting: Panel-mounted

• Dimensions (approx.): 173 x 73 x 148 mm

• Weight: ~1.5 kg

• Certifications: CE, UL, RoHS

◆ Applications:

• Packaging machinery

• Light-duty conveyors

• Fan and pump control

• Food and beverage processing

• Compact OEM equipment

• Positioning tasks in lab or light industrial settings

◆ Why Choose the E82EV751_2B?:

• Precise Control: Vector control offers high torque at low speeds

• Flexible Expansion: Modular design supports fieldbus and digital I/O

• Quick Installation: Preconfigured functions for rapid setup

• Reliable Design: Proven durability in industrial environments

• Compact Size: Ideal for space-limited control cabinets

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
