Allen-Bradley 1756-OB16DK

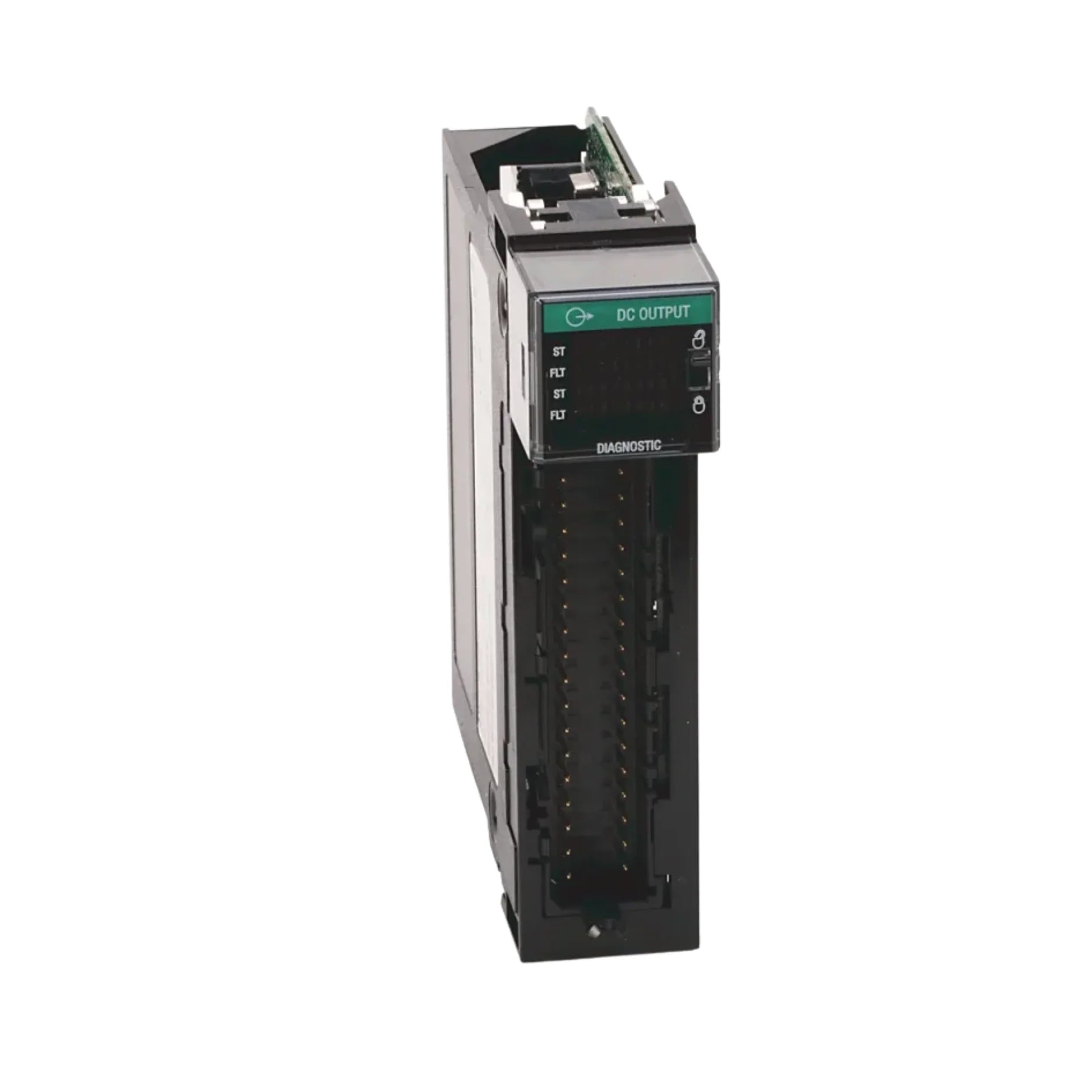

The Allen-Bradley 1756-OB16DK is a 16-channel DC digital output module for ControlLogix systems, featuring sourcing outputs, point-level diagnostics, and a conformal coating for added protection in harsh environments. Operating at 19–30V DC, this module is ideal for industrial applications that require high reliability, environmental resistance, and real-time fault monitoring.

Each channel delivers up to 1.0 A, and the built-in field-side diagnostics simplify troubleshooting while enhancing system visibility. Its conformal coating guards against dust, moisture, and corrosive atmospheres.

◆ Key Features:

• 16 Sourcing DC Outputs – For 19–30V DC operation

• Field-Side Diagnostics – Detect open circuits, shorts, and overloads

• 1.0 A Output per Channel – Handles high-demand field devices

• Conformally Coated – Extra protection for harsh industrial environments

• Channel Status LEDs – Visual indicators for output and fault status

• Hot-Swappable Design – Replace without shutting down your system

• Compatible Terminal Blocks: 1756-TBCH or 1756-TBS6H

• Studio 5000 Integration – Full programming and monitoring support

◆ Technical Specifications:

• Catalog Number: 1756-OB16DK

• Number of Outputs: 16 sourcing

• Voltage Range: 19–30V DC

• Output Current per Channel: 1.0 A max

• Total Current per Module: 8.0 A max

• Protection: Field-side diagnostics with conformal coating

• Isolation Voltage: 250V continuous

• Backplane Current: ~180 mA @ 5.1V DC

• Connector: 36-pin RTB (sold separately)

• Operating Temperature: 0°C to +60°C

• Mounting: ControlLogix chassis

◆ Applications:

• Harsh Industrial Environments – Conformal coating protects against contaminants

• Predictive Maintenance – Real-time diagnostics at the point level

• Material Handling and Machine Automation

• OEM Systems Requiring Robust Output Modules

◆ Why Choose the 1756-OB16DK?

• Reliable DC outputs with fault diagnostics per channel

• Enhanced environmental protection with conformal coating

• Designed for demanding ControlLogix installations

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
