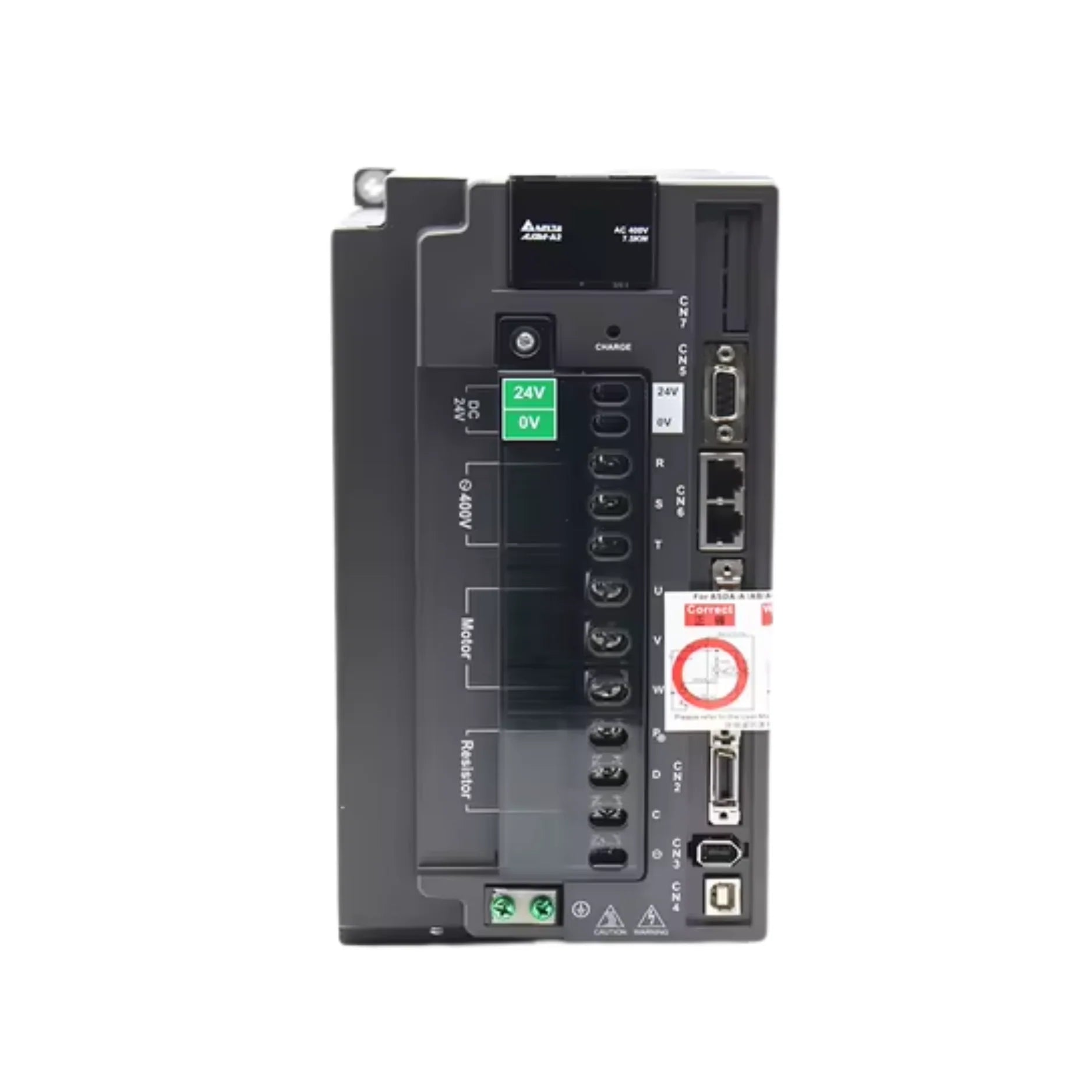

Delta ASD-A2-7543-M – 7.5 kW

The Delta ASD-A2-7543-M is a 7.5 kW servo drive from Delta's ASDA-A2 series, designed to deliver precise motion control for demanding industrial applications. Operating on a 400V 3-phase power supply, this drive supports CANopen communication, enabling seamless integration into complex automation systems. Its full-closed loop control capability ensures high positioning accuracy by compensating for mechanical imperfections.

◆ Key Features:

• Power Rating: 7.5 kW

• Input Voltage: 3-phase 380–480V AC

• Continuous Output Current: 30 Arms

• Peak Output Current: 62.46 Arms

• Control Modes: Position, speed, and torque control

• Communication Interface: CANopen DS301 standard with 1 Mbps speed

• Electronic Cam (E-CAM): Supports up to 720 points for complex motion profiles

• Full-Closed Loop Control: Enhances positioning accuracy by reading secondary feedback signals

• Vibration Suppression: Automatic low-frequency and high-frequency resonance suppression

• Internal Position Mode (PR Mode): Allows definition of motion paths with up to 64 internal position settings

◆ Technical Specifications:

• Model: ASD-A2-7543-M

• Series: ASDA-A2

• Input Voltage Range: 380–480V AC

• Continuous Output Current: 30 Arms

• Peak Output Current: 62.46 Arms

• Communication Protocol: CANopen DS301

• E-CAM Points: Up to 720

• Encoder Support: 20-bit incremental encoder

• Operating Temperature: 0°C to 55°C

• Dimensions: Refer to the ASDA-A2 Series Catalog for detailed dimensions

◆ Applications:

• CNC Machinery: Ensures precise tool positioning and smooth operation

• Robotics: Facilitates accurate and responsive robotic movements

• Packaging Equipment: Enhances synchronization and efficiency in packaging lines

• Printing Machines: Provides consistent and high-quality print registration

• Textile Machinery: Supports complex motion requirements in textile production

◆ Why Choose the Delta ASD-A2-7543-M?:

• High Precision: 20-bit encoder support for accurate positioning

• Advanced Communication: CANopen interface for seamless integration

• Robust Performance: Capable of handling demanding industrial tasks

• Versatile Control: Multiple control modes to suit various applications

• Reliable Operation: Built-in protection features ensure long-term durability

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
