B&R X20AI4632

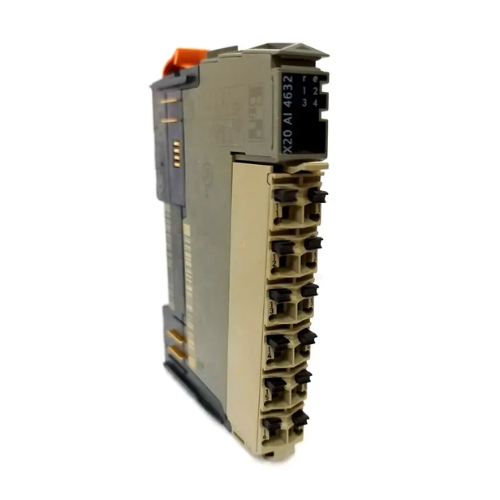

◆ B&R X20AI4632 | 4-Channel Analog Input Module – 0–10 V, 13-bit Resolution, X20 Series

The B&R X20AI4632 is a 4-channel analog input module from the X20 Series, designed for capturing voltage signals in industrial control systems. It supports a 0–10 V input range with 13-bit resolution, making it ideal for precise signal acquisition and monitoring in automation environments.

◆ Key Features

• Number of Inputs: 4 analog voltage inputs

• Input Range: 0–10 V DC

• Resolution: 13-bit

• Connection Type: 1-wire system

• Filter Settings: Configurable for signal conditioning

• Status LEDs: Input status and operating condition indicators

• Electrical Isolation: Between input channels and backplane

◆ Technical Specifications

• Model Number: X20AI4632

• Series: X20

• Input Type: Voltage (0–10 V)

• Resolution: 13-bit (1 LSB = approx. 1.22 mV)

• Input Impedance: ≥ 50 kΩ

• Conversion Time: Configurable

• Channel Isolation: Yes

• Power Consumption (Bus): 0.2 W

• Mounting Type: DIN rail

• Protection Class: IP20

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +85°C

• Certifications: CE, UL, ATEX Zone 2

◆ Applications

• Process Monitoring: Capture temperature, pressure, and other analog sensor values

• Factory Automation: Accurate voltage signal acquisition

• OEM Systems: Scalable analog input for customized applications

• Data Logging: High-resolution input for trend tracking

◆ Why Choose the X20AI4632?

• High Accuracy: 13-bit resolution for reliable analog signal reading

• Robust Isolation: Ensures signal integrity and system protection

• Modular Design: Easily integrates into X20 systems

• Flexible Filtering: Tailor signal processing with configurable filter settings

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. FLATECK Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
