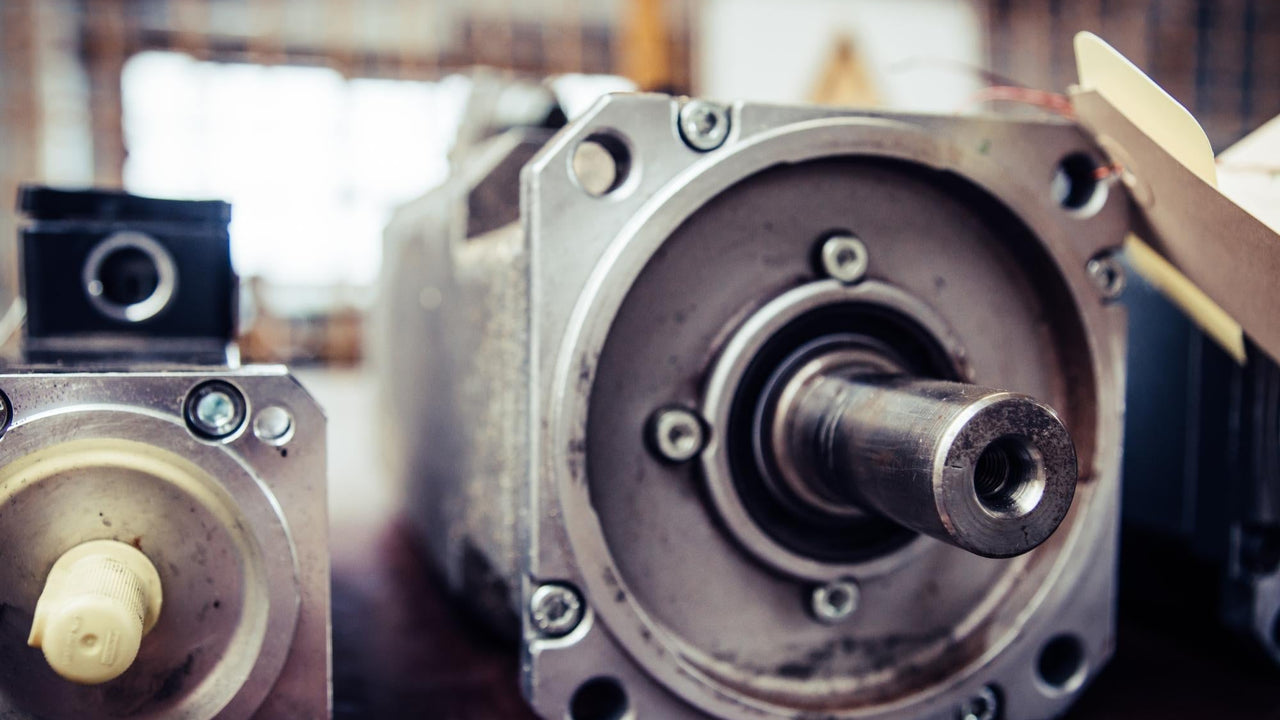

Servo motors are widely used in automation and robotics for their ability to deliver precise angular position, velocity, and acceleration control. These motors operate through feedback systems, making them essential in applications requiring high performance and accuracy.

Working Mechanism

Servo motors consist of three key components:

• Controlled Device – The motor itself.
• Output Sensor – Typically a potentiometer or encoder that provides position feedback.
• Feedback System – Compares the desired position with the current position and adjusts accordingly.

The closed-loop system uses Pulse Width Modulation (PWM) signals to control the motor’s position. The duration of the pulse determines the motor’s angular position, enabling fine-tuned motion.

Types of Servo Motors

• AC Servo Motors – High efficiency, suitable for heavy-duty applications.
• DC Servo Motors – Simple design, used in low-power applications.
• Positional Rotation Servo Motors – Ideal for angular movements.
• Continuous Rotation Servo Motors – Rotate freely without stopping at fixed angles.
• Linear Servo Motors – Convert rotational motion into linear motion.
• Brushless Servo Motors – High performance, durable, and energy-efficient.

Applications

• Robotics – Robotic arms and grippers.
• CNC Machinery – Precision control in cutting and machining.
• Camera Stabilizers – Smooth motion in gimbals.
• Medical Equipment – Surgical robots and imaging systems.
• Conveyor Systems – Automated material handling.
• Home Automation – Smart home devices and appliances.

Popular Brands and Models

• Siemens – 1FK7, 1FT7
• Yaskawa – Sigma-7, Sigma-5
• Mitsubishi Electric – MELSERVO-J4, MELSERVO-ALPHA
• Fanuc – Alphai Series, Beta Series
• ABB – M3AA, PMU Motors
• Kollmorgen – AKM Series
• Rockwell Automation (Allen-Bradley) – Kinetix 5500, Kinetix 5700

Choosing the Right Servo Motor

Selecting the right servo motor depends on:

• Required torque and speed
• Type of feedback system
• Environmental conditions
• Compatibility with the control system
• Precision and accuracy needed

Servo motors offer reliable and precise motion control, making them indispensable in modern automation systems.
